The Best Cost Effective Fiber Optic Spectrometer 200nm ~ 1100nm Range

Name: The Best Cost Effective Fiber Optic Spectrometer 200nm 1100nm Range
Brand: JINSP
Price: 1 USD

China The Best Cost Effective Fiber Optic Spectrometer 200nm ~ 1100nm Range wholesale

Brand Name : JINSP

Model Number : SR100Z

Certification : ISO9001 CE

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100PCS/30-40 days

Delivery Time : 30-400 working days

Packaging Details : International Shipping Package

Spectrual Range : 200nm - 1100nm

Effective pixels : 2048*64

Pixel Size : 28.672*0.896mm

Fiber Interface : SMA905, free space

Numerical Aperture : 0.13

Focal Length : 100mm

Dimensions : 180mm*120mm*50mm

Weight : 1.2kg

Contact Now

UV-VIS 200nm-1100nm Wide Wavelength Range Fiber Optic Spectrometer

Ultraviolet analysis revolutionized: The SR100Z's 70% QE in UV bands sets new standards for optical detection. Its unique pixel binning capability allows customizable resolution (2048x64 max) while maintaining 14-bit dynamic range - perfect for both weak luminescence studies and high-intensity laser characterization.

With hybrid cooling technology that prevents thermal noise drift, researchers can now conduct hour-long Raman experiments without baseline shifts. The integrated optical path design further ensures measurement consistency across temperature-varying environments.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooling Hamamatsu S11850
	Eﬀective Pixel	2048*64
	Pixel Size	14*14μm
	Sensing Area	28.672*0.896mm
Optical Parameters	Optical Design	F/4 cross type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
	Fiber Interface	SMA905, free space
Electrical Parameters	Integration Time	4ms~900s
	Data Output Interface	USB3.0, RS232, RS485, 20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	＜3.5A
Physical Parameters	Operating Temperature	10°C ~ 40°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	＜90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range( nm)	Resolution( nm)	Slit(μm)
SR100Z-G21	200~1100	2.2nm	50μm
		1.5nm	25μm
		1.0nm	10μm
SR100Z-G23 SR100Z-G24	200~875 350~1025	1.6nm	50μm
		1.0nm	25μm
		0.7nm	10μm
SR100Z-G28	200~345	0.35nm	50μm
		0.2nm	25μm
		0.14nm	10μm
SR100Z-G25	532~720(4900cm-1)	13cm-1	50μm
SR100Z-G26	638~830(3200cm-1)*	10cm-1	25μm
SR100Z-G27	785~1080(3200cm-1)*	11cm-1	50μm

Note:The*are primarily designed for Raman applications, with the corresponding Raman.

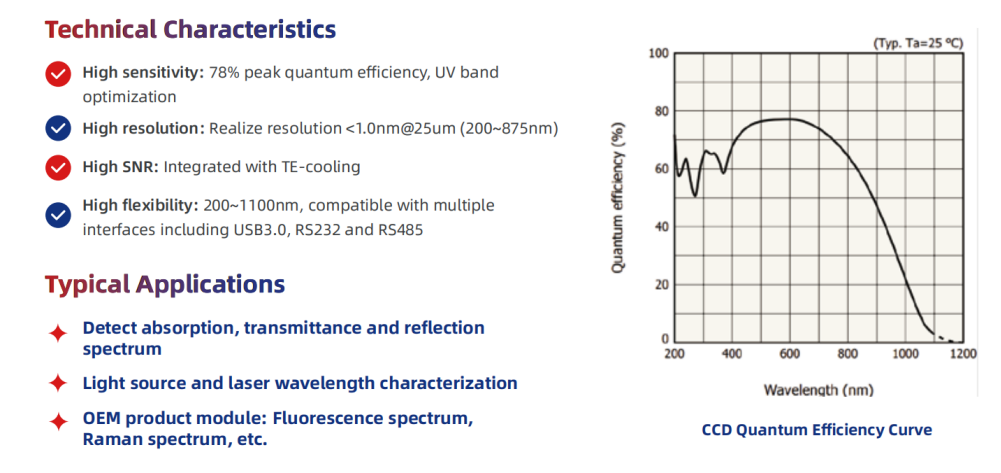

Technical Characteristics:

High sensitivity: 78% peak quantum eﬃciency, UV band optimization
High resolution: Realize resolution <1.0nm@25um (200~875nm)
High ﬂexibility: 200nm~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485

Typical Applications:

Detect absorption, transmittance and reflection Spectrum
OEM product module: Fluorescence spectrum, Raman spectrum,etc.

The Best Cost Effective Fiber Optic Spectrometer 200nm ~ 1100nm Range

Company Introduction:

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company’s core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.

In addition to its main headquarters located in the bustling city of Beijing, JINSP has established a fully owned subsidiary manufacturing facility situated in the province of Jiangsu, China.

JINSP Company received ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. JINSP can provide required certifications, such as certification by the Ministry of Public Security or National Institute of Metrology, Environmental Level Certification, IP Level Certification, CE Certification, Transport Identification Report, EU ECAC certification, German ICT Security Testing, etc.

The Best Cost Effective Fiber Optic Spectrometer 200nm ~ 1100nm Range

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
