SR100Q Fiber Optical Spectrometer for High Sensitivity Raman Spectrometers Ultra High SNR and Numerical Aperture of 0.13

Name: SR100Q Fiber Optical Spectrometer for High Sensitivity Raman Spectrometers Ultra High SNR and Numerical Aperture of 013
Brand: JINSP
Price: 1 USD

China SR100Q Fiber Optical Spectrometer for High Sensitivity Raman Spectrometers Ultra High SNR and Numerical Aperture of 0.13 wholesale

Brand Name : JINSP

Model Number : SR100Q

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5PCS/90-120 days

Delivery Time : 90-120 working days

Packaging Details : Customized Packaging

Spectrual Range : 185~1100nm(can be customized)

Model Name : SR100Q Ultra High Sensitivity Fiber Optic Spectrometer

Numerical Aperture : 0.13

Focal Length : 100nm

Entrance Slit width : 10μm,25μm,50μm,100μm,200μm(customizable)

Contact Now

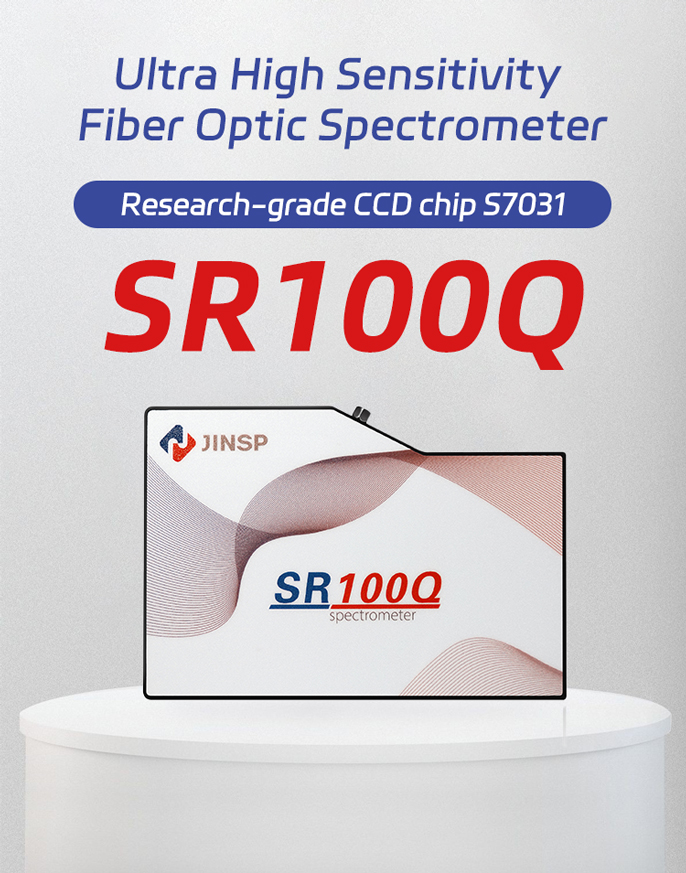

SR100Q Ultra High Sensitivity Fiber Optic Spectrometer

The JINSP SR100Q spectrometer is integrated with the Hamamatsu S7031, a scientific-grade TE-cooled area array CCD chip. With a pixel size of up to 24*24μm and excellent quantum efficiency of up to 92%, it ensures high response in the ultraviolet band and effectively improves the sensitivity and SNR of weak signals. Furthermore, it can realize excellent spectrum signals, and stable and reliable performance based on the advanced high-resolution light path and low-noise, high-speed FPGA signal processing chip.The TE cooling-based CCD greatly reduces dark noise and is well suited for weak lightdetection in scientific research applications.

Specifications:

Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
Effective Pixel	*1024122**
Resolution	1.2~7.7nm(can be customized)
Dynamic Range	12000:1
Dark Noise	5Counts(RMS)
Optical Design	F/4 cross-type
Entrance Slit width	10μm,25μm,50μm,100μm,200μm(customizable)
SNR	1000:1
Dimensions	*185mm126mm53mm*
Weight	1.7kg

Technical Characteristics

► High quantum efficiency, 92%peak@650nm, 83%@232nm

► High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1

► Noise-free clear processing of weak signal in long exposure, strong adaption to environment

SR100Q Fiber Optical Spectrometer for High Sensitivity Raman Spectrometers Ultra High SNR and Numerical Aperture of 0.13

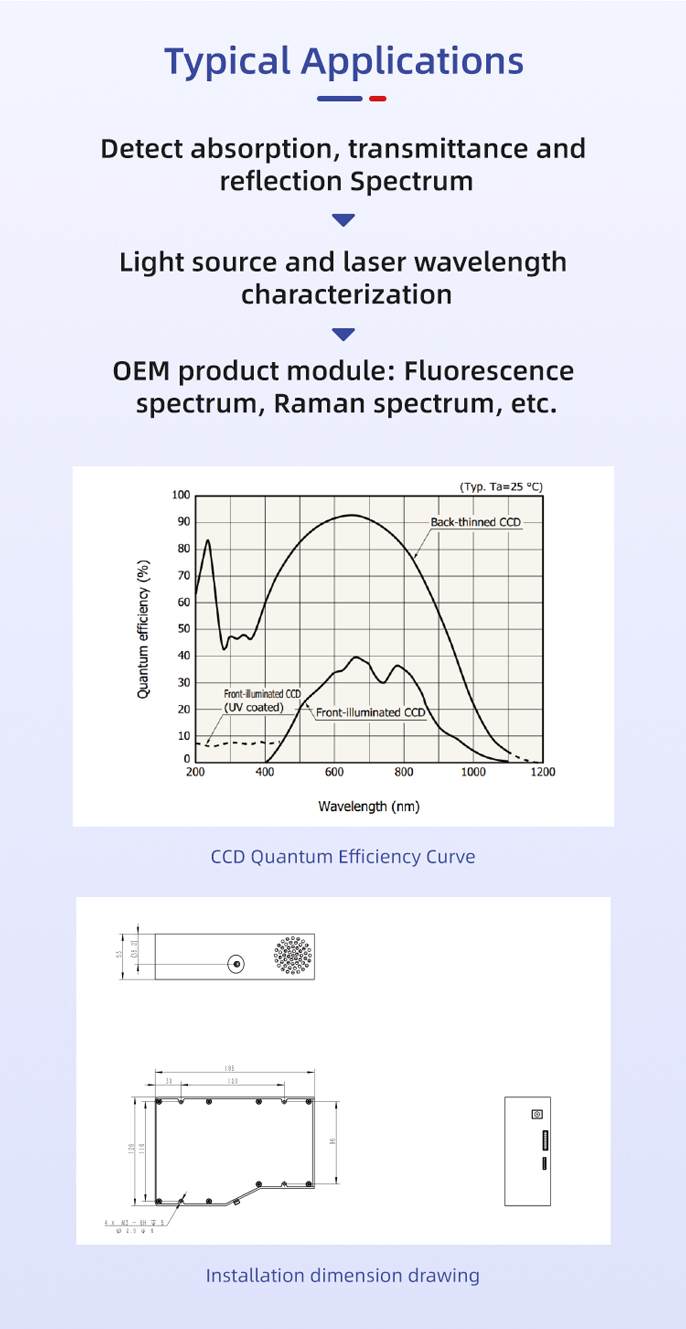

Typical Applications:

» Detect absorption, transmittance and reflection Spectrum

» Light source and laser wavelength characterization

» OEM product module: Fluorescence spectrum, Raman spectrum, etc.

JINSP is a professional leading solution provider of molecular spectroscopy, particulaly in Roman Spectroscopy for many years.

Our products mostly include:

--UV VIS NIR fiber optic spectrometers;

--Desktop/portable, online Raman analyzers for laboratory or indutrial liquid & gas analysis;

--On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry etc;

FAQ

Q1:Can your offer a operation traning?
A1:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q2:What's your website?
A2:You can visit:www.jinsptech.com

Q3:What about your quality assurance?

A3:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.

Q3:What's the production time for delivery?

A4:Around 2-3 months.
